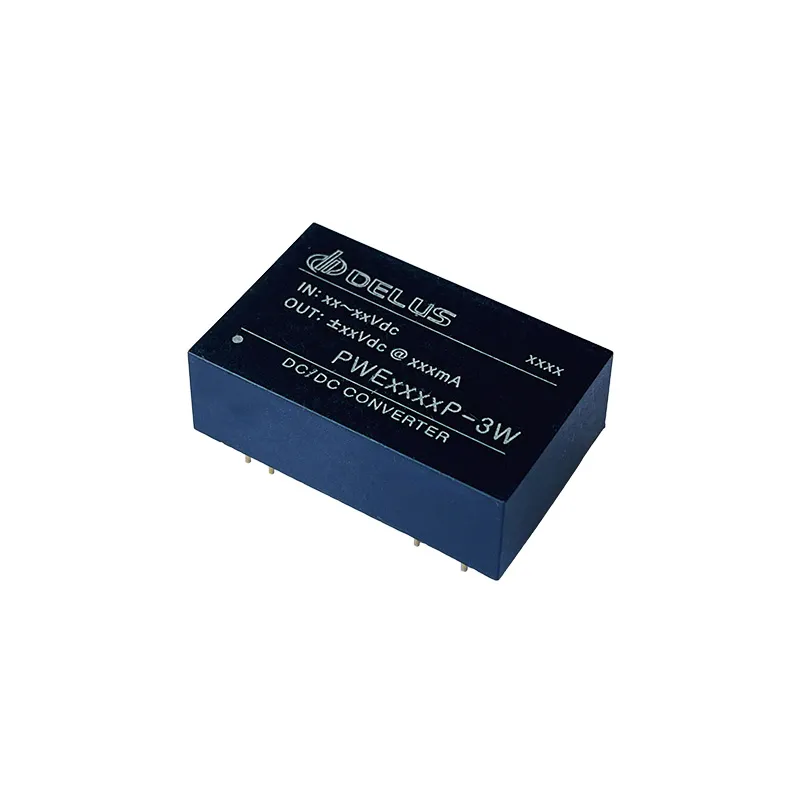

PWE_P-3W Series
3W, 4:1 wide input, isolated 3000V & regulated dual output dc-dc converter
产品特点
- Operating temperature: -40 to +85℃
- 9-36/18-75Vdc input
- ±5V/±9V/±12V/±15V/±24V output
- Efficiency up to 89%
- Ultra-low noise & ripple
- Bare module meet CISPR22/EN55022 Class B
- 100% burn-In
- No external heat sink
- Continuous short circuit protection
- RoHS/CE multiple compliance
- With 3 years warranty
- Case size 31.8×20.3×11.5mm
特性描述
PWE_P-3W series power converter compact, high power density, can save valuable board space to reduce product volume. It has the characteristics of wide input voltage range, low starting current, good load characteristics and minimum noise characteristics.
The chip ceramic capacitors and SMT are used in all series. These converters have characteristics of long life, excellent performance, stability and reliability.
