1.5–8W 宽电压输入转换器（PFM）
本系列为 1.5W～8W PFM 架构隔离转换模块，适配小型 PCB。具备超低纹波和噪声、优秀 EMC 特性，集成持续短路保护与软启动，支持变频工作；多档隔离电压可选，最高工作温度 105℃。
产品参数
- 电气参数
- 输入电压：4.5V ～ 75V
- 输出功率：1.5W ～ 8W
- 隔离电压：高达 3000 VDC
- 转换效率：高达 86%
- 环境特性
- 工作温度范围：-40°C ～ +105°C
- 存储温度：-50°C ～ +130°C
- 湿度：95%（无凝结）
- 平均无故障时间：> 350 万小时
- 物理特性
- 封装：SIP8 / SIP10 / DIP
- 尺寸：最小 22.0 × 12.0 × 9.5 mm
- 外壳：UL94-V0 阻燃材质
- 认证：CE / RoHS
热门产品
-
WB2412P-8W
隔离模块电源 18-36V 转 12V DC-DC Converter
-
WB2405P-3W
Ultra-low ripple and noise 3W dc-dc converter, 18-36V input 5V output, EMC certification and it is of industrial grade.
-
WB2405P-8W
18 to 36 V Input convert to 5 V Output, 8 W DC-DC Converter, Isolation 1500 V, EMC certified, industrial grade
-
WB2412D-6W
Low ripple and noise 6W power module, 18 to 36V Input convert to 12V Output, DC-DC Converter, EMC certified, industrial grade
系列型号
| 图片 | 系列 / 型号 | 操作 | |||||
|---|---|---|---|---|---|---|---|
|
WB_P-8W 系列 | 8 | 9-18,18-36 | 5,9,12,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WB2412P-8W | 8 | 18-36 | 12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB2405P-8W | 8 | 18-36 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB2409P-8W | 8 | 18-36 | 9 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WB_P-8W 系列所属全部型号 ➔ | |||||||
|
PWB_P-3W 系列 | 3 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWB4815P-3W | 3 | 18-75 | 15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWB2405P-3W | 3 | 9-36 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWB4824P-3W | 3 | 18-75 | 24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWB_P-3W 系列所属全部型号 ➔ | |||||||
|
WF_P-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | 5,9,12,15,24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WF2424P-3W | 3 | 18-36 | 24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WF4809P-3W | 3 | 36-72 | 9 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WF0515P-3W | 3 | 4.5-9 | 15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WF_P-3W 系列所属全部型号 ➔ | |||||||
|
WA_P-8W 系列 | 8 | 18-36 | ±5,±9,±15 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WA2409P-8W | 8 | 18-36 | ±9 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA2405P-8W | 8 | 18-36 | ±5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA2415P-8W | 8 | 18-36 | ±15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WA_P-8W 系列所属全部型号 ➔ | |||||||
|
PWF_P-3W 系列 | 3 | 9-36,18-75 | 5,9,12,15,24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWF4824P-3W | 3 | 18-75 | 24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWF4815P-3W | 3 | 18-75 | 15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWF2424P-3W | 3 | 9-36 | 24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWF_P-3W 系列所属全部型号 ➔ | |||||||
|
1.5W 系列 | 1.5 | 4.5–9,9-18,18-36,36-72,9-36 | 3.3,5,9,12,15,±5,±9,±12,±15 | 1500,3000 | 22.0 × 12.0 × 9.5 | 查看详情 |
| WB1203CS-1W5 | 1.5 | 9-18 | 3.3 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WB1212CS-1W5 | 1.5 | 9-18 | 12 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WB1215CS-1W5 | 1.5 | 9-18 | 15 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WB1205CS-1W5 | 1.5 | 9-18 | 5 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WB1224CS-1W5 | 1.5 | 9-18 | 24 | 1500 | 22.0 × 12.0 × 9.5 | ||
| 查看详细参数和 1.5W 系列所属全部型号 ➔ | |||||||
|
WB_P-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WB1205P-3W | 3 | 9-18 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB1215P-3W | 3 | 9-18 | 15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB2405P-3W | 3 | 18-36 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WB_P-3W 系列所属全部型号 ➔ | |||||||
|
PWB_KP-3W 系列 | 3 | 18-75 | 5 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWB4805KP-3W | 3 | 18-75 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWB_KP-3W 系列所属全部型号 ➔ | |||||||
|
MA_D-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | ±5,±12,±15 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| MA2415D-3W | 3 | 18-36 | ±15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| MA0512D-3W | 3 | 4.5-9 | ±12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| MA1215D-3W | 3 | 9-18 | ±15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 MA_D-3W 系列所属全部型号 ➔ | |||||||
|
WB_D-6W 系列 | 6 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 25.4 × 25.4 × 10.2 | 查看详情 |

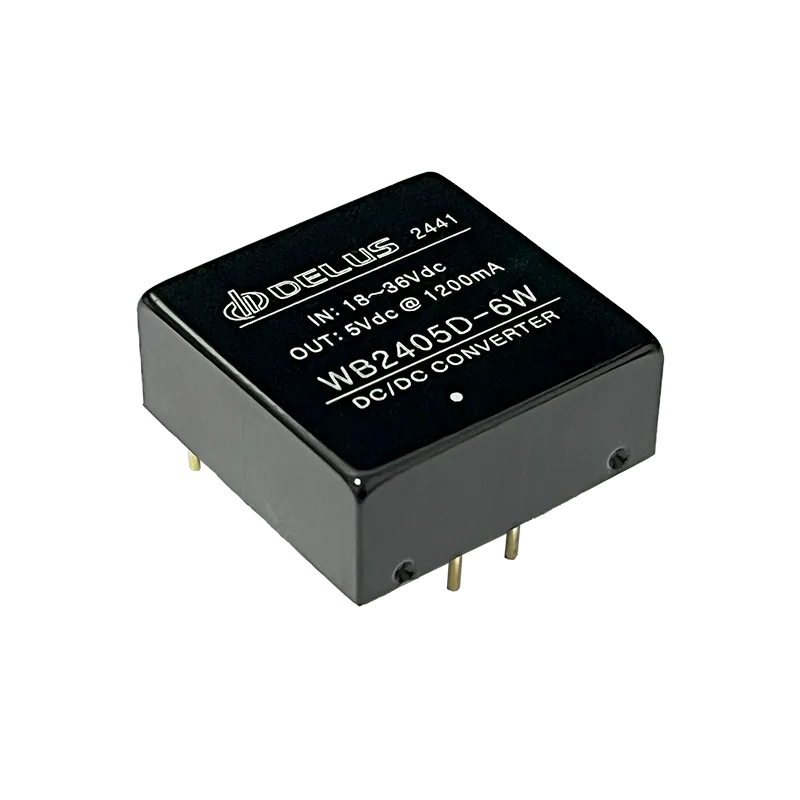

| WB2405D-6W | 6 | 18-36 | 5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| WB2412D-6W | 6 | 18-36 | 12 | 1500 | 25.4 × 25.4 × 10.2 | ||
| WB1205D-6W | 6 | 9-18 | 5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| 查看详细参数和 WB_D-6W 系列所属全部型号 ➔ | |||||||
|
WA_D-6W 系列 | 6 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 1500 | 25.4 × 25.4 × 10.2 | 查看详情 |
| WA2405D-6W | 6 | 18-36 | ±5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| WA1205D-6W | 6 | 9-18 | ±5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| WA1212D-6W | 6 | 9-18 | ±12 | 1500 | 25.4 × 25.4 × 10.2 | ||
| 查看详细参数和 WA_D-6W 系列所属全部型号 ➔ | |||||||
|
WA_P-6W 系列 | 6 | 9-18,18-36,36-72 | ±5,±9,±12,±15,±24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WA1205P-6W | 6 | 9-18 | ±5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA2424P-6W | 6 | 18-36 | ±24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA1209P-6W | 6 | 9-18 | ±9 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WA_P-6W 系列所属全部型号 ➔ | |||||||
|
WE_P-6W 系列 | 6 | 9-18,18-36,36-72 | ±5,±9,±12,±15,±24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WE1215P-6W | 6 | 9-18 | ±15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WE4812P-6W | 6 | 36-72 | ±12 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WE2415P-6W | 6 | 18-36 | ±15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WE_P-6W 系列所属全部型号 ➔ | |||||||
|
WA_P-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | ±5,±9,±12,±15,±24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WA0515P-3W | 3 | 4.5-9 | ±15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA4824P-3W | 3 | 36-72 | ±24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WA4809P-3W | 3 | 36-72 | ±9 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WA_P-3W 系列所属全部型号 ➔ | |||||||
|
PWB_D-6W 系列 | 6 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 25.4 × 25.4 × 10.2 | 查看详情 |
| PWB2424D-6W | 6 | 9-36 | 24 | 1500 | 25.4 × 25.4 × 10.2 | ||
| PWB2405D-6W | 6 | 9-36 | 5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| PWB2412D-6W | 6 | 9-36 | 12 | 1500 | 25.4 × 25.4 × 10.2 | ||
| 查看详细参数和 PWB_D-6W 系列所属全部型号 ➔ | |||||||
|
MB_D-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | 5,12,15,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| MB4824D-3W | 3 | 36-72 | 24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| MB4815D-3W | 3 | 36-72 | 15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| MB0512D-3W | 3 | 4.5-9 | 12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 MB_D-3W 系列所属全部型号 ➔ | |||||||
|
WE_P-3W 系列 | 3 | 4.5-9,9-18,18-36,36-72 | ±5,±9,±12,±15,±24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WE0515P-3W | 3 | 4.5-9 | ±15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WE1224P-3W | 3 | 9-18 | ±24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WE2424P-3W | 3 | 18-36 | ±24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WE_P-3W 系列所属全部型号 ➔ | |||||||
|
WB_CS-3W 系列 | 3 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 22.0 × 12.0 × 9.5 | 查看详情 |
| WB1215CS-3W | 3 | 9-18 | 15 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WB2412CS-3W | 3 | 18-36 | 12 | 1500 | 22.0 × 12.0 × 9.5 | ||
| PWB2405CS-3W | 3 | 9-36 | 5 | 1500 | 22.0 × 12.0 × 9.5 | ||
| 查看详细参数和 WB_CS-3W 系列所属全部型号 ➔ | |||||||
|
PWA_P-6W 系列 | 6 | 9-36,18-75 | ±5,±9,±12,±15,±24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWA2424P-6W | 6 | 9-36 | ±24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWA4812P-6W | 6 | 18-75 | ±12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWA2405P-6W | 6 | 9-36 | ±5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWA_P-6W 系列所属全部型号 ➔ | |||||||
|
WF_P-6W 系列 | 6 | 9-18,18-36,36-72 | 5,9,12,15,24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WF2405P-6W | 6 | 18-36 | 5 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WF4812P-6W | 6 | 36-72 | 12 | 3000 | 31.8 × 20.3 × 11.5 | ||
| WF4805P-6W | 6 | 36-72 | 5 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WF_P-6W 系列所属全部型号 ➔ | |||||||
|
PWB_P-6W 系列 | 6 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWB4815P-6W | 6 | 18-75 | 15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWB2415P-6W | 6 | 9-36 | 15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWB2405P-6W | 6 | 9-36 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWB_P-6W 系列所属全部型号 ➔ | |||||||
|
PWA_D-6W 系列 | 6 | 9-36,18-75 | ±5,±9,±12,±15 | 1500 | 25.4 × 25.4 × 10.2 | 查看详情 |
| PWA4809D-6W | 6 | 18-75 | ±9 | 1500 | 25.4 × 25.4 × 10.2 | ||
| PWA2412D-6W | 6 | 9-36 | ±12 | 1500 | 25.4 × 25.4 × 10.2 | ||
| PWA4805D-6W | 6 | 18-75 | ±5 | 1500 | 25.4 × 25.4 × 10.2 | ||
| 查看详细参数和 PWA_D-6W 系列所属全部型号 ➔ | |||||||
|
WA_CS-3W 系列 | 3 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 1500 | 22.0 × 12.0 × 9.5 | 查看详情 |
| WA4809CS-3W | 3 | 36-72 | ±9 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WA2409CS-3W | 3 | 18-36 | ±9 | 1500 | 22.0 × 12.0 × 9.5 | ||
| WA1212CS-3W | 3 | 9-18 | ±12 | 1500 | 22.0 × 12.0 × 9.5 | ||
| 查看详细参数和 WA_CS-3W 系列所属全部型号 ➔ | |||||||
|
PWA_P-3W 系列 | 3 | 9-36,18-75 | ±5,±9,±12,±15,±24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWA2412P-3W | 3 | 9-36 | ±12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWA4824P-3W | 3 | 18-75 | ±24 | 1500 | 31.8 × 20.3 × 11.5 | ||
| PWA2415P-3W | 3 | 9-36 | ±15 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWA_P-3W 系列所属全部型号 ➔ | |||||||
|
WB_P-6W 系列 | 6 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 31.8 × 20.3 × 11.5 | 查看详情 |
| WB2412P-6W | 6 | 18-36 | 12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB4805P-6W | 6 | 36-72 | 5 | 1500 | 31.8 × 20.3 × 11.5 | ||
| WB4812P-6W | 6 | 36-72 | 12 | 1500 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 WB_P-6W 系列所属全部型号 ➔ | |||||||
|
PWE_P-6W 系列 | 6 | 9-36,18-75 | ±5,±9,±12,±15,±24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWE4812P-6W | 6 | 18-75 | ±12 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWE4805P-6W | 6 | 18-75 | ±5 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWE2424P-6W | 6 | 9-36 | ±24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWE_P-6W 系列所属全部型号 ➔ | |||||||
|
WF_CS-3W 系列 | 3 | 9-18,18-36,36-72 | 5,9,12,15,24 | 3000 | 22.0 × 12.0 × 9.5 | 查看详情 |
| WF2424CS-3W | 3 | 18-36 | 24 | 3000 | 22.0 × 12.0 × 9.5 | ||
| WF4805CS-3W | 3 | 36-72 | 5 | 3000 | 22.0 × 12.0 × 9.5 | ||
| WF1212CS-3W | 3 | 9-18 | 12 | 3000 | 22.0 × 12.0 × 9.5 | ||
| 查看详细参数和 WF_CS-3W 系列所属全部型号 ➔ | |||||||
|
PWF_P-6W 系列 | 6 | 9-36,18-75 | 5,9,12,15,24 | 3000 | 31.8 × 20.3 × 11.5 | 查看详情 |
| PWF4824P-6W | 6 | 18-75 | 24 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWF2405P-6W | 6 | 9-36 | 5 | 3000 | 31.8 × 20.3 × 11.5 | ||
| PWF4815P-6W | 6 | 18-75 | 15 | 3000 | 31.8 × 20.3 × 11.5 | ||
| 查看详细参数和 PWF_P-6W 系列所属全部型号 ➔ | |||||||
|
WE_CS-3W 系列 | 3 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 3000 | 22.0 × 12.0 × 9.5 | 查看详情 |
| WE2415CS-3W | 3 | 18-36 | ±15 | 3000 | 22.0 × 12.0 × 9.5 | ||
| WE2409CS-3W | 3 | 18-36 | ±9 | 3000 | 22.0 × 12.0 × 9.5 | ||
| PWE2412CS-3W | 3 | 9-36 | ±12 | 3000 | 22.0 × 12.0 × 9.5 | ||
| 查看详细参数和 WE_CS-3W 系列所属全部型号 ➔ | |||||||
典型应用
-
工业控制
PLC、人机界面、工业计算机、电机驱动器
-
通信设备
网络交换机、路由器、基站
-
医疗设备
诊断仪器、病人监护仪
-
嵌入式设备
单板计算机、物联网网关
