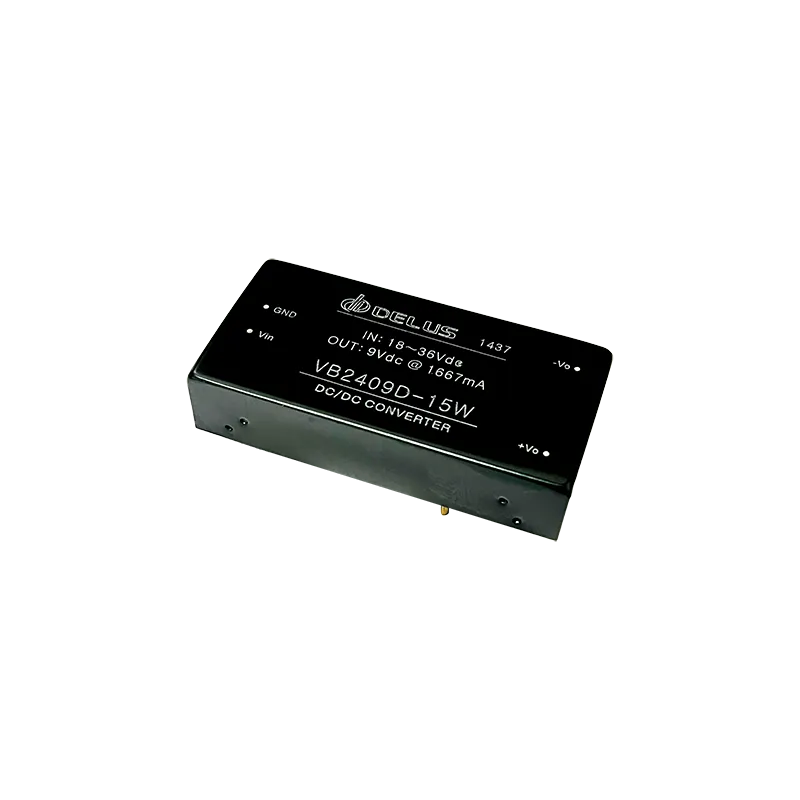

10–150W 宽电压输入转换器（PWM）
采用 PWM 拓扑的大功率电源模块，面向严苛工况应用开发，功率覆盖 10W ～ 150W，性能稳定可靠。产品支持宽电压输入，最高效率可达 95%，散热表现优异。非常适合重型工业设备、通信设备等场景，满足设备对高可靠、大电流隔离供电的需求。
产品参数
- 电气参数
- 输入电压：4.5V ～ 75V
- 输出功率：10W ～ 150W
- 隔离电压：高达 3000V DC
- 转换效率：高达 95%
- 环境特性
- 工作温度范围：-40°C ～ +85°C
- 存储温度：-50°C ～ +130°C
- 湿度：95%（无凝结）
- 平均无故障时间：> 350 万小时
- 物理特性
- 封装样式：SIP8 / DIP
- 尺寸：最小 22.0 × 12.0 × 9.5 mm
- 材质：UL94-V0 阻燃
- 认证：CE / RoHS
热门产品
-
VB4824D-20W
low ripple & noise dc-dc converter, 20W, 36~72V to 24V, 1500V isolated
-
VB1212D-10W
low ripple & noise dc-dc converter, 10W, 9~18V to 12V, 1500V isolated & regulated single output
-
VB1205D-10W
low ripple & noise dc-dc converter, 10W, 9~18V to 5V, 1500V isolated & regulated single output
系列型号
| 图片 | 系列 / 型号 | 操作 | |||||
|---|---|---|---|---|---|---|---|
|
VB_D-10W 系列 | 10 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| VB4805D-10W | 10 | 36-72 | 5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VB1205D-10W | 10 | 9-18 | 5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VB2409D-10W | 10 | 18-36 | 9 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 VB_D-10W 系列所属全部型号 ➔ | |||||||
|

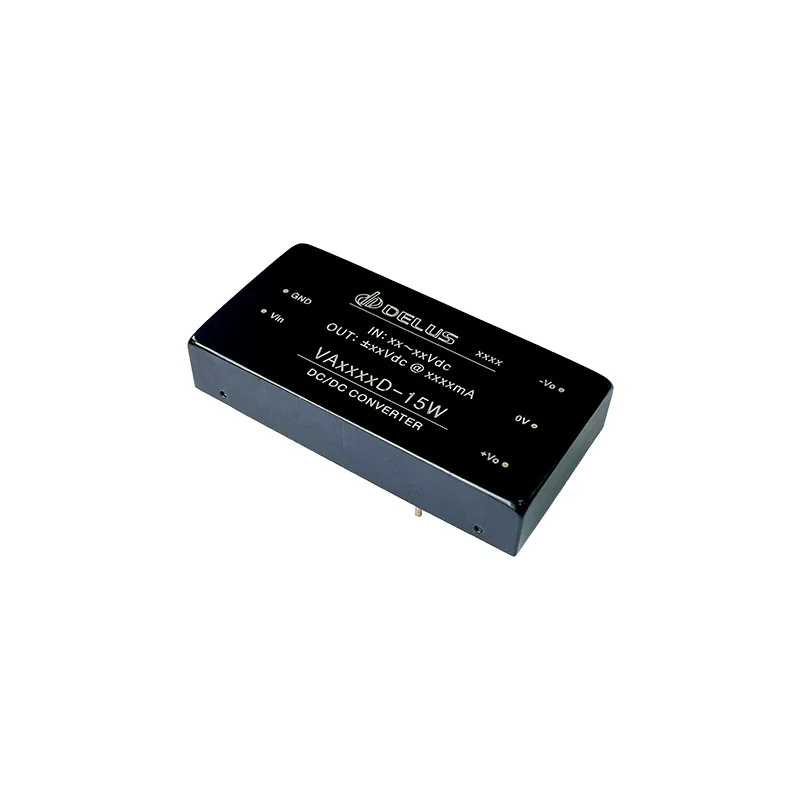

VA_D-15W 系列 | 15 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| VA1209D-15W | 15 | 9-18 | ±9 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VA2415D-15W | 15 | 18-36 | ±15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VA1212D-15W | 15 | 9-18 | ±12 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 VA_D-15W 系列所属全部型号 ➔ | |||||||
|

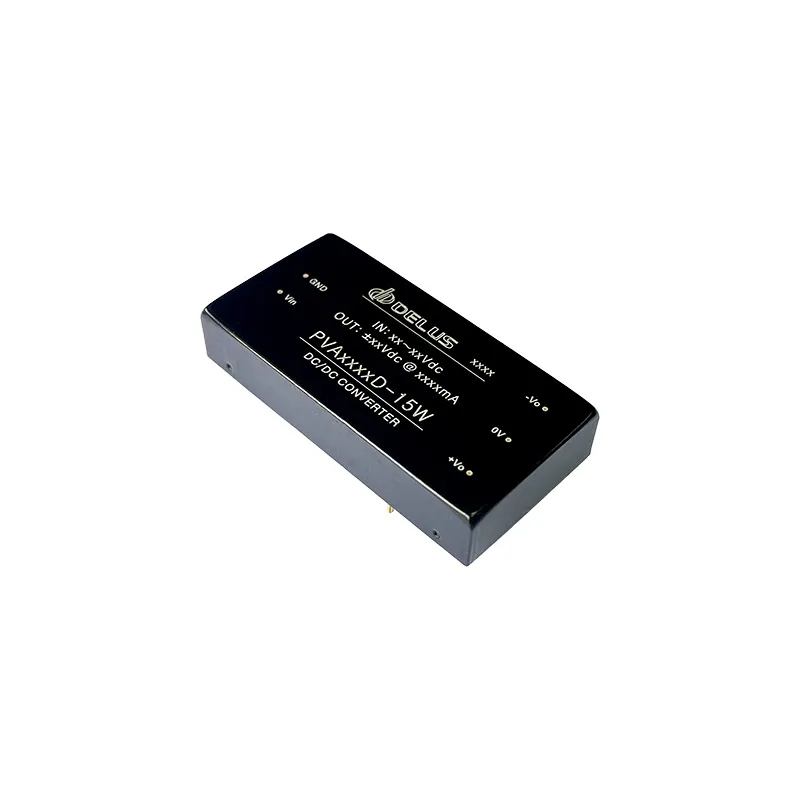

PVA_D-15W 系列 | 15 | 9-36,18-75 | ±5,±9,±12,±15 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| PVA2405D-15W | 15 | 9-36 | ±5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVA2412D-15W | 15 | 9-36 | ±12 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVA4815D-15W | 15 | 18-75 | ±15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 PVA_D-15W 系列所属全部型号 ➔ | |||||||
|
|
VA_D-10W 系列 | 10 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| VA1209D-10W | 10 | 9-18 | ±9 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VA2415D-10W | 10 | 18-36 | ±15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VA1212D-10W | 10 | 9-18 | ±12 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 VA_D-10W 系列所属全部型号 ➔ | |||||||
|
VB_D-20W 系列 | 20 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 50.8 × 40.6× 12.7 | 查看详情 |
| VB4824D-20W | 20 | 36-72 | 24 | 1500 | 50.8 × 40.6× 12.7 | ||
| VB2412D-20W | 20 | 18-36 | 12 | 1500 | 50.8 × 40.6× 12.7 | ||
| VB1209D-20W | 20 | 9-18 | 9 | 1500 | 50.8 × 40.6× 12.7 | ||
| 查看详细参数和 VB_D-20W 系列所属全部型号 ➔ | |||||||
|
UB_D-10W 系列 | 10 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| UB2405D-10W | 10 | 9-36 | 5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| UB4809D-10W | 10 | 18-75 | 9 | 1500 | 50.8 × 25.4 × 10.2 | ||
| UB4815D-10W | 10 | 18-75 | 15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 UB_D-10W 系列所属全部型号 ➔ | |||||||
|

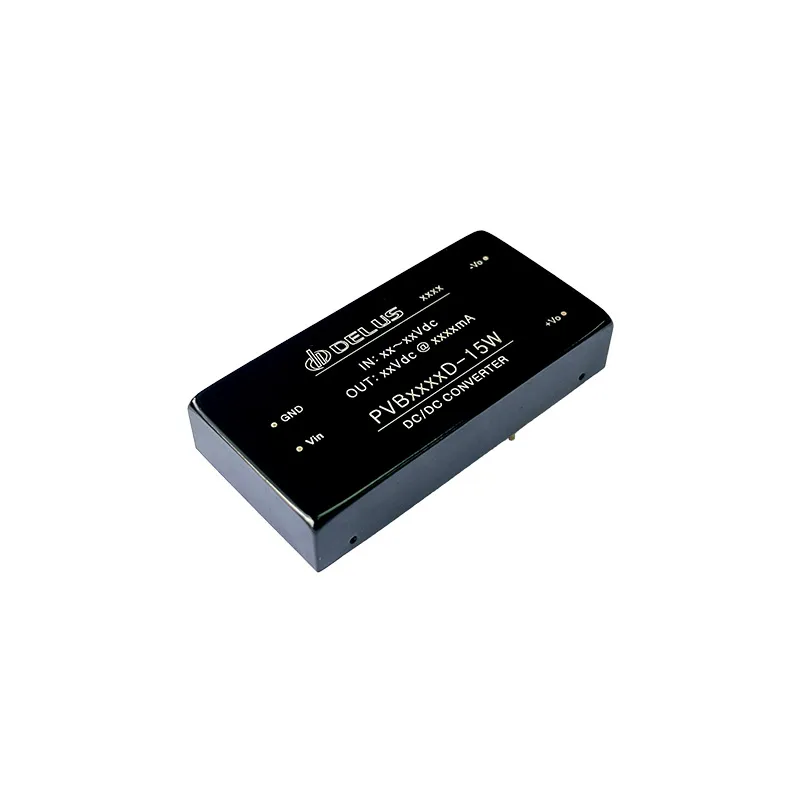

PVB_D-15W 系列 | 15 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| PVB4824D-15W | 15 | 18-75 | 24 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVB2424D-15W | 15 | 9-36 | 24 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVB4815D-15W | 15 | 18-75 | 15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 PVB_D-15W 系列所属全部型号 ➔ | |||||||
|
|
VA_D-20W 系列 | 20 | 9-18,18-36,36-72 | ±5,±9,±12,±15 | 1500 | 50.8 × 40.6× 12.7 | 查看详情 |
| VA1215D-20W | 20 | 9-18 | ±15 | 1500 | 50.8 × 40.6× 12.7 | ||
| VA2405D-20W | 20 | 18-36 | ±5 | 1500 | 50.8 × 40.6× 12.7 | ||
| VA1212D-20W | 20 | 9-18 | ±12 | 1500 | 50.8 × 40.6× 12.7 | ||
| 查看详细参数和 VA_D-20W 系列所属全部型号 ➔ | |||||||
|

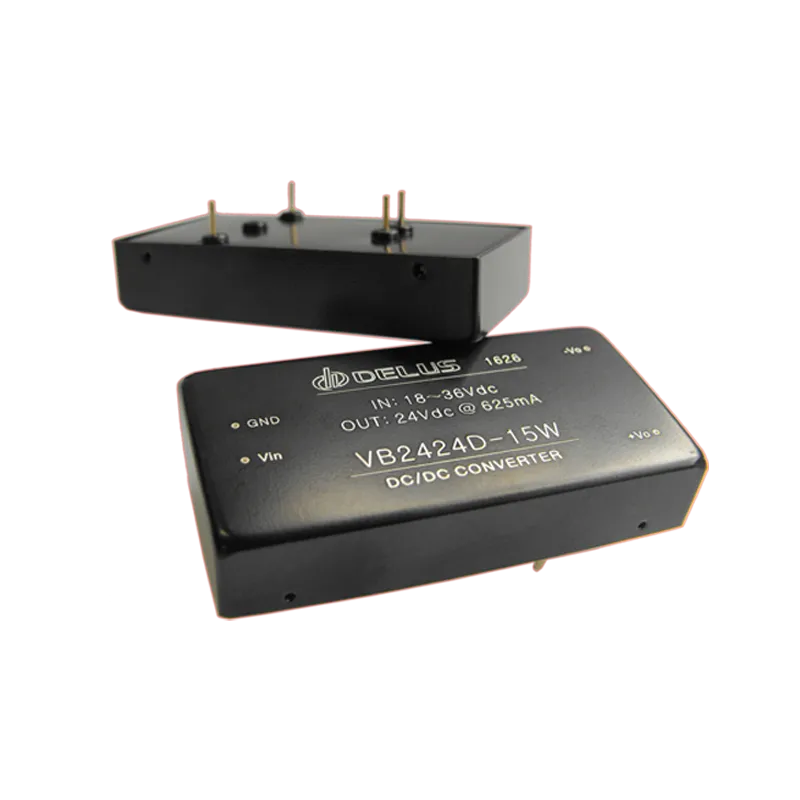

VB_D-15W 系列 | 15 | 9-18,18-36,36-72 | 5,9,12,15,24 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| VB2424D-15W | 15 | 18-36 | 24 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VB2412D-15W | 15 | 18-36 | 12 | 1500 | 50.8 × 25.4 × 10.2 | ||
| VB4812D-15W | 15 | 36-72 | 12 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 VB_D-15W 系列所属全部型号 ➔ | |||||||
|

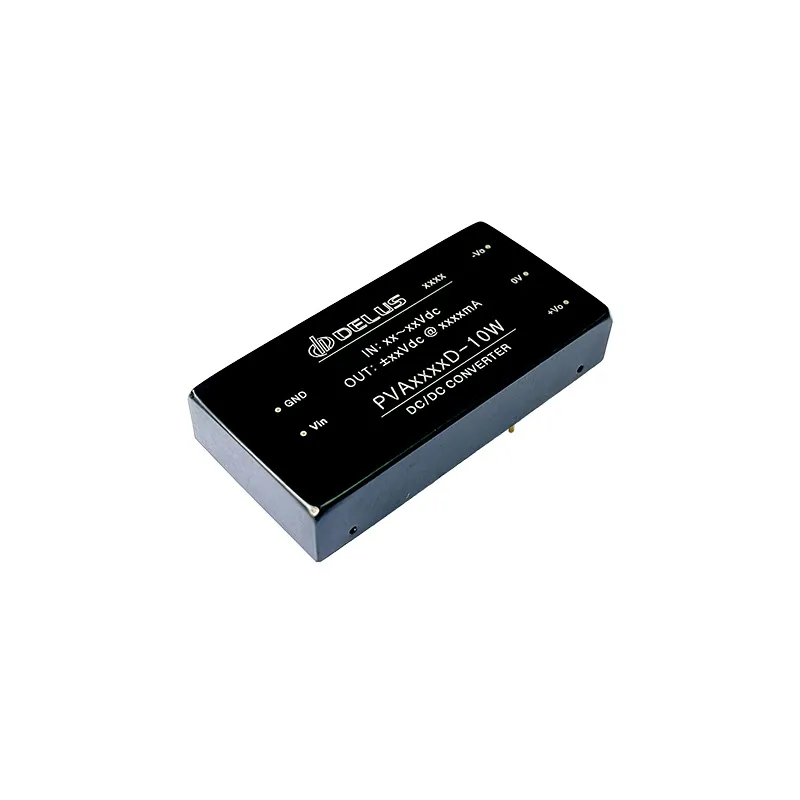

PVA_D-10W 系列 | 10 | 9-36,18-75 | ±5,±9,±12,±15 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| PVA2409D-10W | 10 | 9-36 | ±9 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVA4815D-10W | 10 | 18-75 | ±15 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVA2405D-10W | 10 | 9-36 | ±5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 PVA_D-10W 系列所属全部型号 ➔ | |||||||
|
|
PVB_D-20W 系列 | 20 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 50.8 × 40.6× 12.7 | 查看详情 |
| PVB4824D-20W | 20 | 18-75 | 24 | 1500 | 50.8 × 40.6× 12.7 | ||
| PVB2409D-20W | 20 | 9-36 | 9 | 1500 | 50.8 × 40.6× 12.7 | ||
| PVB4805D-20W | 20 | 18-75 | 5 | 1500 | 50.8 × 40.6× 12.7 | ||
| 查看详细参数和 PVB_D-20W 系列所属全部型号 ➔ | |||||||
|
|
PVA_D-20W 系列 | 20 | 9-36,18-75 | ±5,±9,±12,±15 | 1500 | 50.8 × 40.6× 12.7 | 查看详情 |
| PVA2409D-20W | 20 | 9-36 | ±9 | 1500 | 50.8 × 40.6× 12.7 | ||
| PVA4805D-20W | 20 | 18-75 | ±5 | 1500 | 50.8 × 40.6× 12.7 | ||
| PVA4809D-20W | 20 | 18-75 | ±9 | 1500 | 50.8 × 40.6× 12.7 | ||
| 查看详细参数和 PVA_D-20W 系列所属全部型号 ➔ | |||||||
|

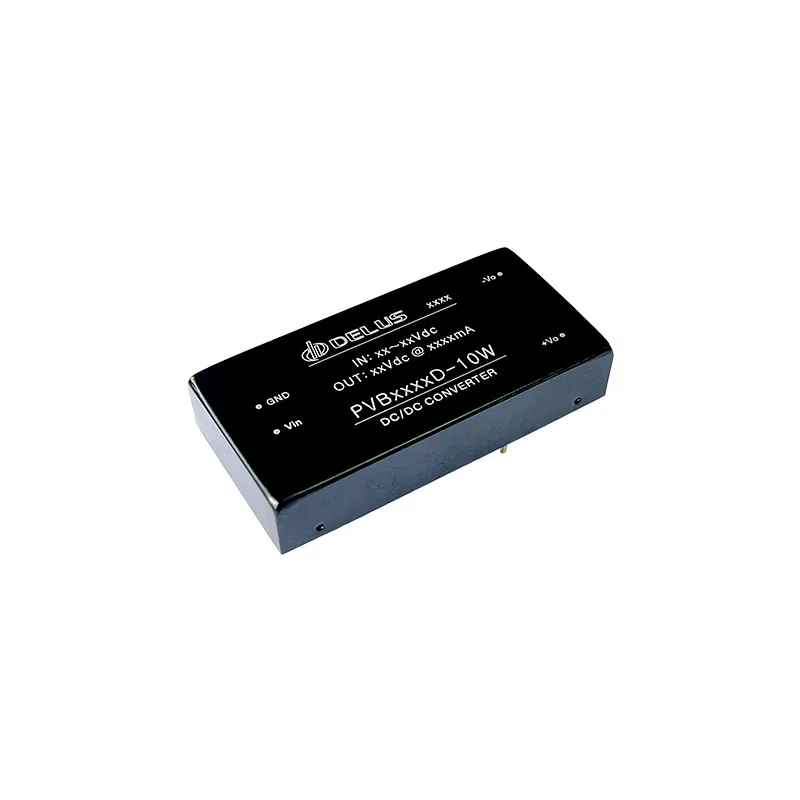

PVB_D-10W 系列 | 10 | 9-36,18-75 | 5,9,12,15,24 | 1500 | 50.8 × 25.4 × 10.2 | 查看详情 |
| PVB2405D-10W | 10 | 18-36 | 5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVB4824D-10W | 10 | 36-72 | 24 | 1500 | 50.8 × 25.4 × 10.2 | ||
| PVB4805D-10W | 10 | 36-72 | 5 | 1500 | 50.8 × 25.4 × 10.2 | ||
| 查看详细参数和 PVB_D-10W 系列所属全部型号 ➔ | |||||||
典型应用
-
工业控制
PLC、人机界面、工业计算机、电机驱动器
-
通信设备
网络交换机、路由器、基站
-
医疗设备
诊断仪器、病人监护仪
-
嵌入式设备
单板计算机、物联网网关
