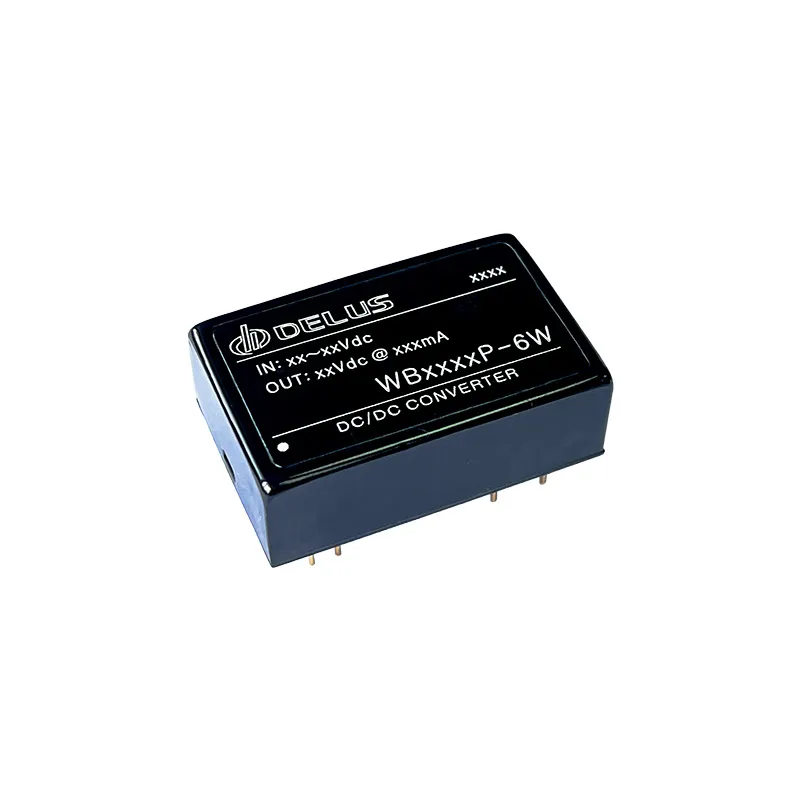

WF_P-6W Series
6W, 2:1 wide range input, 3000V isolated & regulated single output dc-dc converter
产品特点
- I/O Isolation 3000Vdc
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-72Vdc input
- 5V/9V/12V/15V/24V output
- Efficiency up to 88%
- Ultra-low noise & ripple
- Bare module meet CISPR22/EN55022 Class B
- 100% burn-In
- No external heat sink
- Continuous short circuit protection
- RoHS/CE multiple compliance
- With 3 years warranty
- Case size 31.8×20.3×11.5mm
特性描述
WF_P-6W series power converter compact, high power density, can save valuable board space to reduce product volume. It has the characteristics of wide input voltage range, low starting current, good load characteristics and minimum noise characteristics.
The chip ceramic capacitors and SMT are used in all series. These converters have characteristics of long life, excellent performance, stability and reliability.
