Technical Specifications

[/参数表板块标题]

[参数表板块描述]

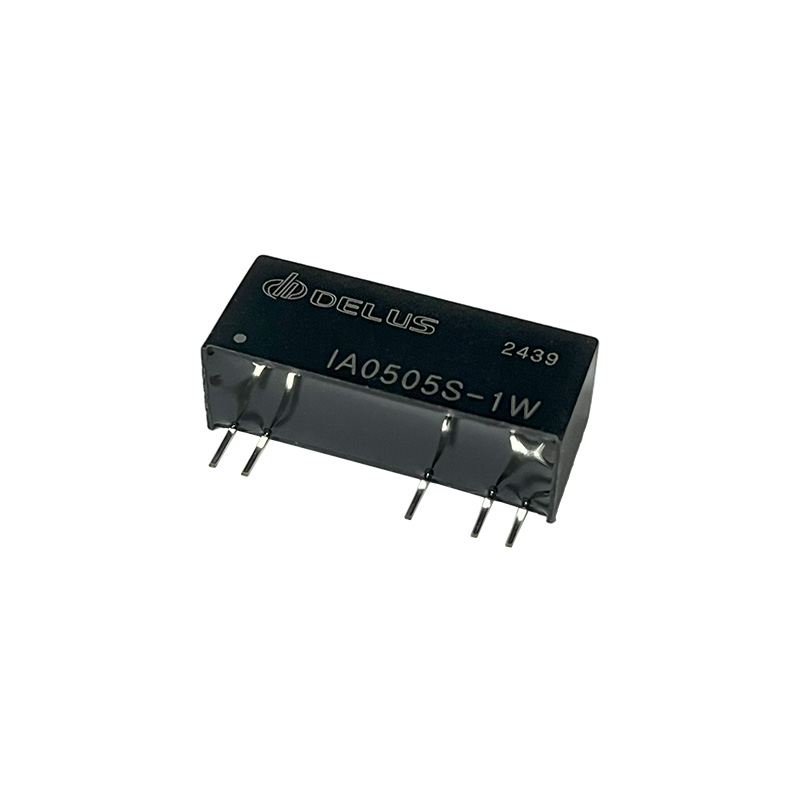

Detailed electrical and environmental parameters for the IA0505S-1W 1W isolated DC-DC converter module.

[/参数表板块描述]

[参数表]

IA0505S-1W Technical Specifications
ParameterConditionsMinTypMaxUnit
Input VoltageDC Input4.755.05.25VDC
Output VoltageNominal
5.0
VDC
Output CurrentFull Load

200mA
Isolation VoltageTested for 1 min1500--VDC
EfficiencyFull load, Nominal Vin
61-%

[/参数表]

[引脚定义板块标题]

[/引脚定义板块标题]

[引脚定义板块描述]

The IA0505S-1W adopts a standard SIP package, ensuring easy integration into PCB designs. Please refer to the mechanical drawing below for exact footprint dimensions.

[/引脚定义板块描述]

[引脚图]

IA_S-1W/2W Pinout
IA_S-1W/2W Pinout

[/引脚图]

[引脚定义]

PinSingle OutputDescription
1VinPositive Input Voltage
2GNDInput Ground
7+VoPositive Output Voltage
9-VoNegative Output Voltage
100VReference Ground

[/引脚定义]
